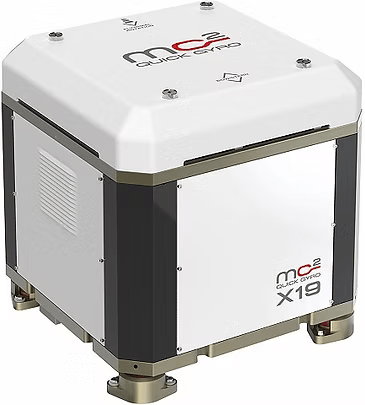

MC² X19 AC Gyro Stabilizer (California)
California boating is rarely “flat water” for long—there’s offshore swell, afternoon wind chop, and constant harbor wake that can make even a premium vessel feel uneasy at rest. The MC² X19 AC is a compact, high-speed gyroscopic stabilizer built to reduce roll both at anchor and underway, helping deliver a calmer ride, better onboard comfort, and a more enjoyable day on the water from San Diego to the Channel Islands and beyond.
Engineered with a smart, space-conscious footprint and advanced control logic, the X19 AC focuses on strong stabilization performance, quiet operation, and safety-forward protections—making it a solid fit for yachts and larger boats that want noticeable roll reduction without the complexity of fin systems.
Why MC² X19 AC Fits California Conditions
California sea states often combine long-period swell with short, steep chop—plus cross-wake in popular anchorages. The X19 AC is designed to improve the onboard experience by:
- Reducing side-to-side roll that causes fatigue and discomfort
- Making time at anchor more relaxing in swell and wake-heavy areas
- Improving usability onboard (salon, galley, staterooms) in rougher conditions
- Supporting refits thanks to flexible installation planning
Core Features
- High-performance stabilization (effective at speed and at anchor)
- Complete protection approach for safer operation
- Smart, compact design
- High installation flexibility, including refit applications
- Dynamic precession control for responsive roll reduction
- Precession lock function from the remote panel
- Equipped with Quick® electric motors
- Low noise emission for quieter comfort
- Thermal protection
- MC² Touch Remote Control support
- MC² Mobile App support (iOS and Android)
Control & Monitoring
MC² Touch Remote Panels
MC² systems can be managed through touch panels with 3.5″ or 5″ graphic displays. They allow you to monitor critical operating values such as:
- Precession release status
- RPM (flywheel speed)
- Inclination angle range (width of the inclination angle)
Utility functions include maintenance reminders and fault alarms, along with adjustable preferences and display settings.
MC² Mobile App
The MC² Mobile App is designed to record stabilizer performance during sea trials and present results clearly on smartphones and tablets (iOS and Android), helping you review stabilization behavior and verify commissioning results.
Specifications
| Specification | MC² X19 | MC² X19 LV |
|---|---|---|
| Model | MC² X19 | MC² X19 LV |
| Input Voltage | 200–240 Vac | 90–120 Vac |
| Rated Speed (RPM) | 5300 RPM | 5300 RPM |
| Angular Momentum | 6,090 N·m·s | 6,090 N·m·s |
| Output Torque | 18,700 N·m | 18,700 N·m |
| Spool-up Time to Rated RPM | 43 min | 43 min |
| Spool-up Time to Stabilization | 35 min | 35 min |
| Power Absorbed (max) | 3,500 W | 3,500 W |
| Frequency | 50–60 Hz | 50–60 Hz |
| Noise Output | < 70 dB | < 70 dB |
| Ambient Air Temperature | -10°C to +55°C (14°F to 131°F) | -10°C to +55°C (14°F to 131°F) |
| Weight | 533 kg (1175.0 lb) | 533 kg (1175.0 lb) |
Notes on Performance Values
- Rated speed: flywheel RPM (revolutions per minute).
- Angular momentum: indicates the stabilizing capability over time (N·m·s).
- Output torque: torque generated by the rotor at rated speed (N·m).
- Power absorption may vary depending on wave period.
- Weight excludes the optional base plate accessory (standard or custom).
Comfort You Can Feel—At Anchor and Underway
With the MC² X19 AC onboard, the goal is simple: less roll, more enjoyment. Whether you’re holding position at a lively anchorage, cruising between harbors, or dealing with changing swell patterns, it’s designed to keep the boat steadier so you can relax, move around comfortably, and enjoy the coast—even when the water isn’t cooperating.
