Description

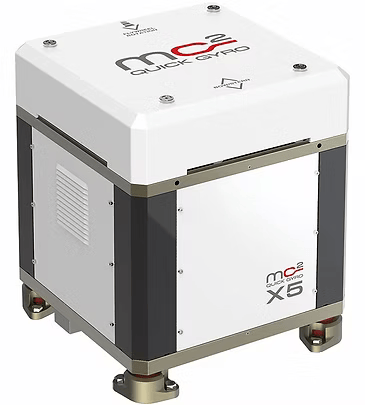

MC² X5 AC Gyro Stabilizer (California)
California waters can be surprisingly lively—even close to shore. Afternoon wind chop, long-period swell, and constant wake traffic in marinas and anchorages can keep smaller boats rolling when you’re trying to relax, fish, entertain, or overnight. The MC² X5 AC is a compact gyroscopic stabilizer built to reduce roll at anchor and underway, delivering a steadier ride with fast spool-up, low noise, and smart safety protections.
With an efficient footprint and responsive control, the X5 AC is a strong fit for owners who want the comfort benefits of gyro stabilization without adding external appendages or sacrificing the boat’s handling feel.
Why MC² X5 AC Fits California Boating
From harbors in San Diego and Long Beach to Catalina and weekend anchorages, the biggest comfort killer is often side-to-side roll. The X5 AC is designed to help by:
- Smoothing roll at anchor in swell and cross-wake environments
- Keeping motion more controlled while cruising in mixed sea states
- Reducing fatigue during longer days on the water
- Making onboard activities easier—moving around, cooking, rigging, and relaxing
Core Features
- High performance stabilization (effective at speed and at anchor)
- Complete protection approach focused on safety and reliability
- Smart, compact design
- High installation flexibility, including refit installations
- Dynamic precession control for responsive roll reduction
- Precession lock function from the remote panel
- Equipped with Quick® electric motors
- Low noise emission for quieter comfort
- Thermal protection for safer operation under demanding conditions
- MC² Touch Remote Control support
- MC² Mobile App support (iOS and Android)
Control & Monitoring
MC² Touch Remote Panels
MC² stabilizers can be managed through touch panels with 3.5″ or 5″ graphic displays. These panels allow you to monitor:
- Precession release status
- RPM (flywheel speed)
- Inclination angle range (width of the inclination angle)
User utilities include maintenance reminders and fault alarms, plus adjustment and display preference options.
MC² Mobile App
The MC² Mobile App is designed to record stabilizer performance during sea trials and display results on smartphones and tablets (iOS and Android), helping verify performance after installation.
Price
$23,100
Specifications
| Specification | MC² X5 | MC² X5 LV |
|---|---|---|
| Model | MC² X5 | MC² X5 LV |
| AC Input Voltage | 200–240 Vac | 90–120 Vac |
| Rated Speed | 4800 RPM | 4800 RPM |
| Angular Momentum | 1722 N·m·s | 1722 N·m·s |
| Output Torque | 5340 N·m | 5340 N·m |
| Spool-up Time to Rated RPM | 18 min | 18 min |
| Spool-up Time to Stabilization | 14 min | 14 min |
| Power Absorbed (max) | 1400 W | 1400 W |
| Frequency | 50–60 Hz | 50–60 Hz |
| Noise Output | < 70 dB | < 70 dB |
| Ambient Air Temperature | -10°C to +55°C (14°F to 131°F) | -10°C to +55°C (14°F to 131°F) |
| Weight | 206 kg (454.1 lb) | 206 kg (454.1 lb) |
Notes on Performance Values
- Rated speed: flywheel RPM (revolutions per minute).
- Angular momentum: indicates the stabilizing capability over time (N·m·s).
- Output torque: torque generated by the rotor at rated speed (N·m).
- Power absorption can vary depending on wave period.
- Weight excludes the optional base plate accessory (standard or custom).
Comfort You Can Feel—At Anchor and Underway
With the MC² X5 AC onboard, the boat feels more settled in the conditions California is known for. Whether you’re tied up in a wake-heavy harbor, anchored in swell, or cruising in mixed seas, it’s designed to keep roll under control—so you can enjoy more time on the water with less motion and more comfort.
