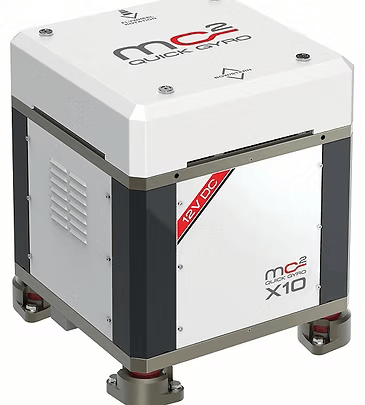

MC² X10 DC Gyro Stabilizers in California
California’s coastal conditions can make even a well-built boat feel restless—offshore swell wraps into anchorages, afternoon wind chop builds quickly, and harbor wakes keep rolling long after the traffic passes. The MC² X10 DC is a 12 Vdc gyro stabilizer engineered to reduce boat roll both at anchor and underway, creating a steadier, more comfortable platform for cruising, fishing, entertaining, and overnighting along the California coast.
With a fast-spinning flywheel, smart control features, and a protection-focused design, the X10 DC delivers strong roll reduction without external appendages—helping preserve handling feel while improving comfort.
Why MC² X10 DC Fits California Boats
From San Diego and Long Beach to Catalina and the Channel Islands, roll is often the biggest comfort limiter. The X10 DC is designed to help by:
- Calming side-to-side motion at anchor in swell and cross-wake environments
- Improving comfort while cruising through mixed sea states
- Reducing fatigue for guests and crew during longer days on the water
- Making onboard life easier—moving around, preparing meals, relaxing, and sleeping
Core Features
- High performance stabilization (effective at speed and at anchor)
- Complete protection approach focused on safety and reliability
- Smart, compact design
- High installation flexibility, including refit installations
- Dynamic precession control for responsive roll reduction
- Precession lock function from the remote panel
- Equipped with Quick® electric motors
- Low noise emission for quieter onboard comfort
- Thermal protection for safer operation under demanding conditions
- MC² Touch Remote Control support
- MC² Mobile App support (iOS and Android)
Control & Monitoring

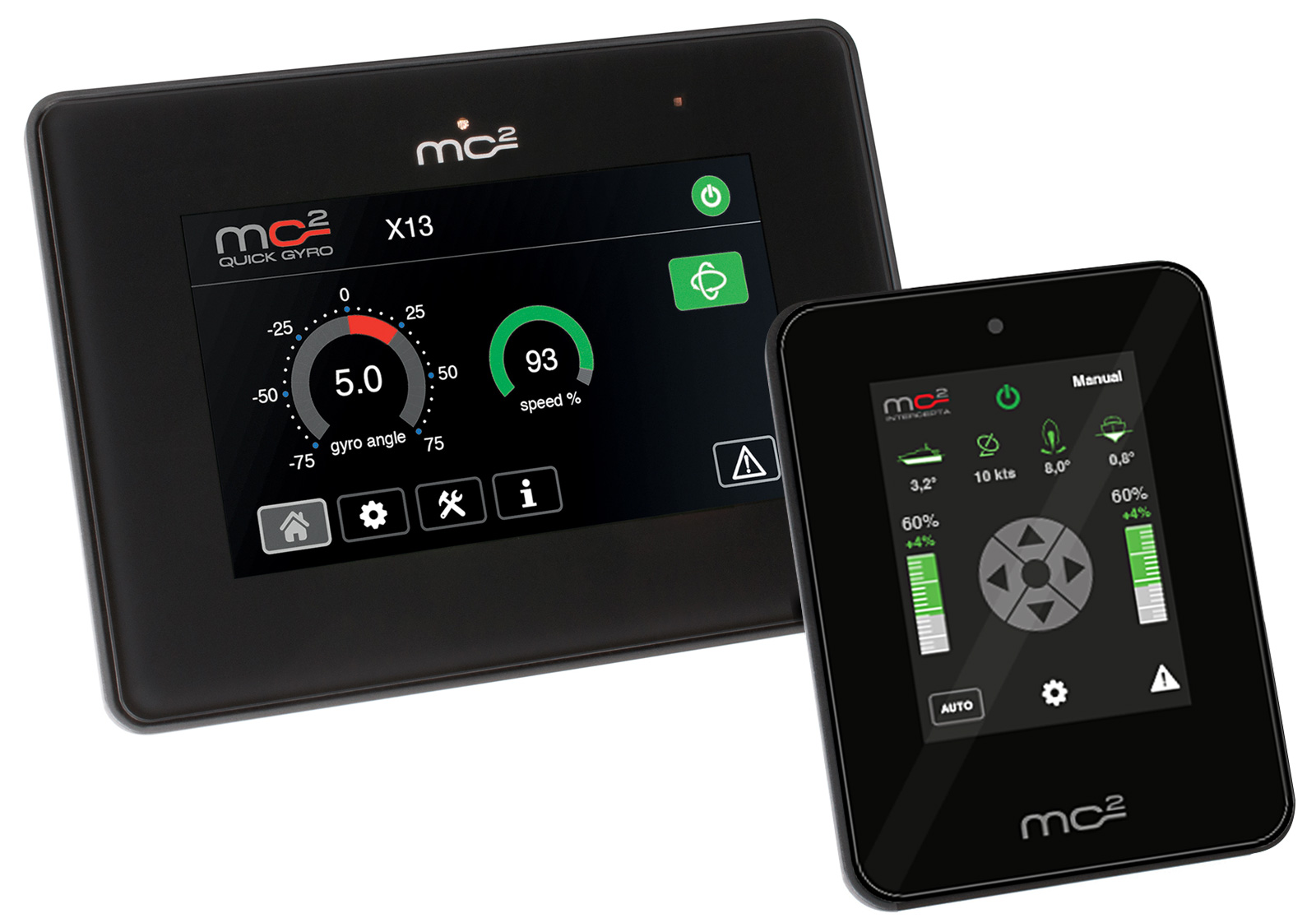

MC² Touch Remote Panels
MC² stabilizers can be managed through touch panels with 3.5″ or 5″ graphic displays. These panels allow you to monitor:
- Precession release status
- RPM (flywheel speed)
- Inclination angle range (width of the inclination angle)
User utilities include maintenance reminders and fault alarms, with adjustment and display preference options for daily operation.
MC² Mobile App
The MC² Mobile App is designed to record stabilizer performance during sea trials and present results clearly on smartphones and tablets (iOS and Android), supporting commissioning and performance review.
MC2_App_Phone_e_Tablet
Specifications
| Specification | MC² X10 DC |
|---|---|
| Input Voltage | 12 Vdc |
| Rated Speed | 6000 RPM |
| Angular Momentum | 3120 N·m·s |
| Output Torque | 10342 N·m |
| Spool-up Time to Rated RPM | 24 min |
| Spool-up Time to Stabilization | 20 min |
| Power Absorbed (max) | 1500–1900 W |
| Noise Output | < 70 dB |
| Ambient Air Temperature | -10°C to +55°C (14°F to 131°F) |
| Weight | 301 kg (663.6 lb) |
Notes on Performance Values
- Rated speed: flywheel RPM (revolutions per minute).
- Angular momentum: indicates the stabilizing capability over time (N·m·s).
- Output torque: torque generated by the rotor at rated speed (N·m).
- Power absorption: sea-state dependent.
- Weight excludes the optional base plate accessory (standard or custom).
Comfort You Can Feel—At Anchor and Underway
With the MC² X10 DC onboard, California’s swell and chop become far less disruptive. Whether you’re anchored in a wake-heavy harbor, holding position in swell, or cruising the coast in mixed seas, it’s designed to keep roll under control—so you can enjoy more time on the water with less motion and more comfort.
