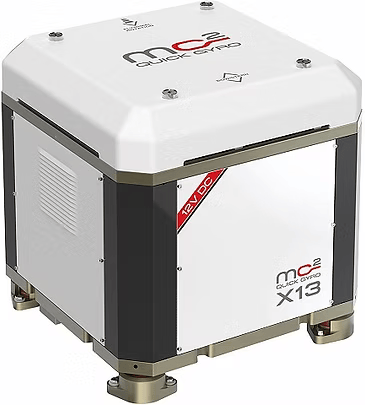

MC² X13 DC Gyro Stabilizers in California
California waters are famous for comfort-testing conditions—long-period swell that rolls into anchorages, afternoon wind chop that builds quickly, and constant wake traffic around marinas and popular coves. The MC² X13 DC is a DC-powered gyro stabilizer designed to reduce boat roll both at anchor and underway, helping your boat feel steadier, calmer, and more enjoyable across the changing sea states common along the California coast.
Because it runs on 12 Vdc, the X13 DC is an excellent option for vessels that prefer or require DC integration while still wanting the proven comfort benefits of gyro stabilization—without external appendages and without compromising the boat’s handling feel.
Why MC² X13 DC Fits California Boating
From San Diego bays to Catalina anchorages and busy weekend harbors, roll can quickly drain the fun from a day on the water. The X13 DC is designed to help by:
- Calming motion at anchor in swell and cross-wake environments
- Improving comfort while cruising in mixed sea states
- Reducing fatigue for guests and crew during longer coastal runs
- Making onboard activities easier—relaxing, cooking, moving around, and sleeping
Core Features
- High performance stabilization (effective at speed and at anchor)
- Complete protection approach focused on safety and reliability
- Smart, compact design
- High installation flexibility, including refit installations
- Dynamic precession control for responsive roll reduction
- Precession lock function from the remote panel
- Equipped with Quick® electric motors
- Low noise emission for quieter onboard comfort
- Thermal protection for safer operation under demanding conditions
- MC² Touch Remote Control support
- MC² Mobile App support (iOS and Android)
Control & Monitoring
MC² Touch Remote Panels
MC² stabilizers can be managed through touch panels with 3.5″ or 5″ graphic displays. These panels allow you to monitor:
- Precession release status
- RPM (flywheel speed)
- Inclination angle range (width of the inclination angle)
User utilities include maintenance reminders and fault alarms, with adjustment and display preference options for daily operation.
MC² Mobile App
The MC² Mobile App is designed to record stabilizer performance during sea trials and present results clearly on smartphones and tablets (iOS and Android), supporting commissioning and performance review.
Specifications
| Specification | MC² X13 DC |
|---|---|
| Input Voltage | 12 Vdc |
| Rated Speed | 4800 RPM |
| Angular Momentum | 4,185 N·m·s |
| Output Torque | 12,850 N·m |
| Spool-up Time to Rated RPM | 32 min |
| Spool-up Time to Stabilization | 30 min |
| Power Absorbed (max) | 1500–2200 W |
| Noise Output | < 70 dB |
| Ambient Air Temperature | -10°C to +55°C (14°F to 131°F) |
| Weight | 461 kg (1016.3 lb) |
Notes on Performance Values
- Rated speed: flywheel RPM (revolutions per minute).
- Angular momentum: indicates the stabilizing capability over time (N·m·s).
- Output torque: torque generated by the rotor at rated speed (N·m).
- Power absorption: sea-state dependent.
- Weight excludes the optional base plate accessory (standard or custom).
Comfort You Can Feel—At Anchor and Underway
With the MC² X13 DC onboard, California’s swell and chop become far less disruptive. Whether you’re anchored in a wake-heavy harbor, holding position in swell, or cruising the coast in mixed seas, it’s designed to keep roll under control—so you can relax more, move around comfortably, and enjoy the water the way you intended.
